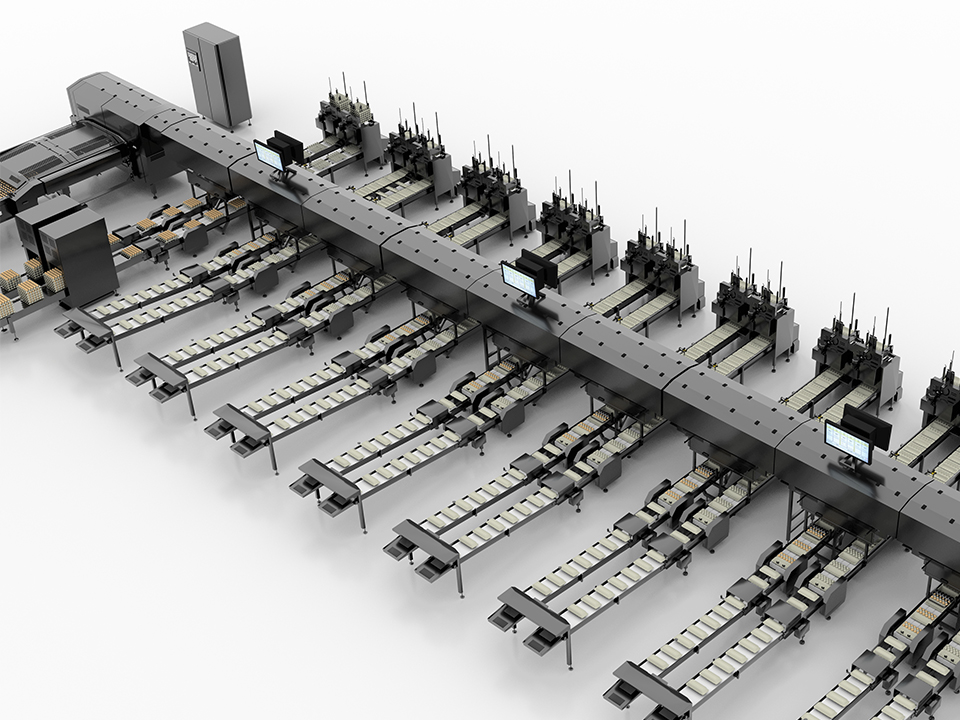

OptiGrader 450
162,000 eggs/hour 450 cases/hour
OptiGrader 450: Reliable Inline Grading with Hygienic Design
The OptiGrader 450 is designed for producers requiring increased capacity while maintaining high hygiene standards. Built with FCM-approved materials and reduced moving parts, it ensures reliable grading performance and simplified maintenance. Optional CIP systems, UVC technology, and wash-down facilities meet the highest food safety standards, protecting both product quality and consumer health.
Its four-track design operates at lower speeds to protect eggs during grading while achieving consistent throughput.
The OptiGrader 450 is specially designed only for in-line operations.
Packing Lane Options
The OptiGrader Series offers flexible packing lane configurations to suit different operational needs:
- OptiLanes – Fully washable and equipped with the industry-leading OptiDenester. Ideal for operations handling multiple egg pack types, offering versatility and hygiene.
- HC Lanes – High-capacity lanes using a simpler, non-washable design with a basic denester. Best suited for operations running mostly the same egg packs, providing a cost-effective solution.
Key Features of the OptiGrader Series:
- Hygienic Design: FCM-approved materials with advanced cleaning options, including optional CIP, UVC, and wash-down facilities.

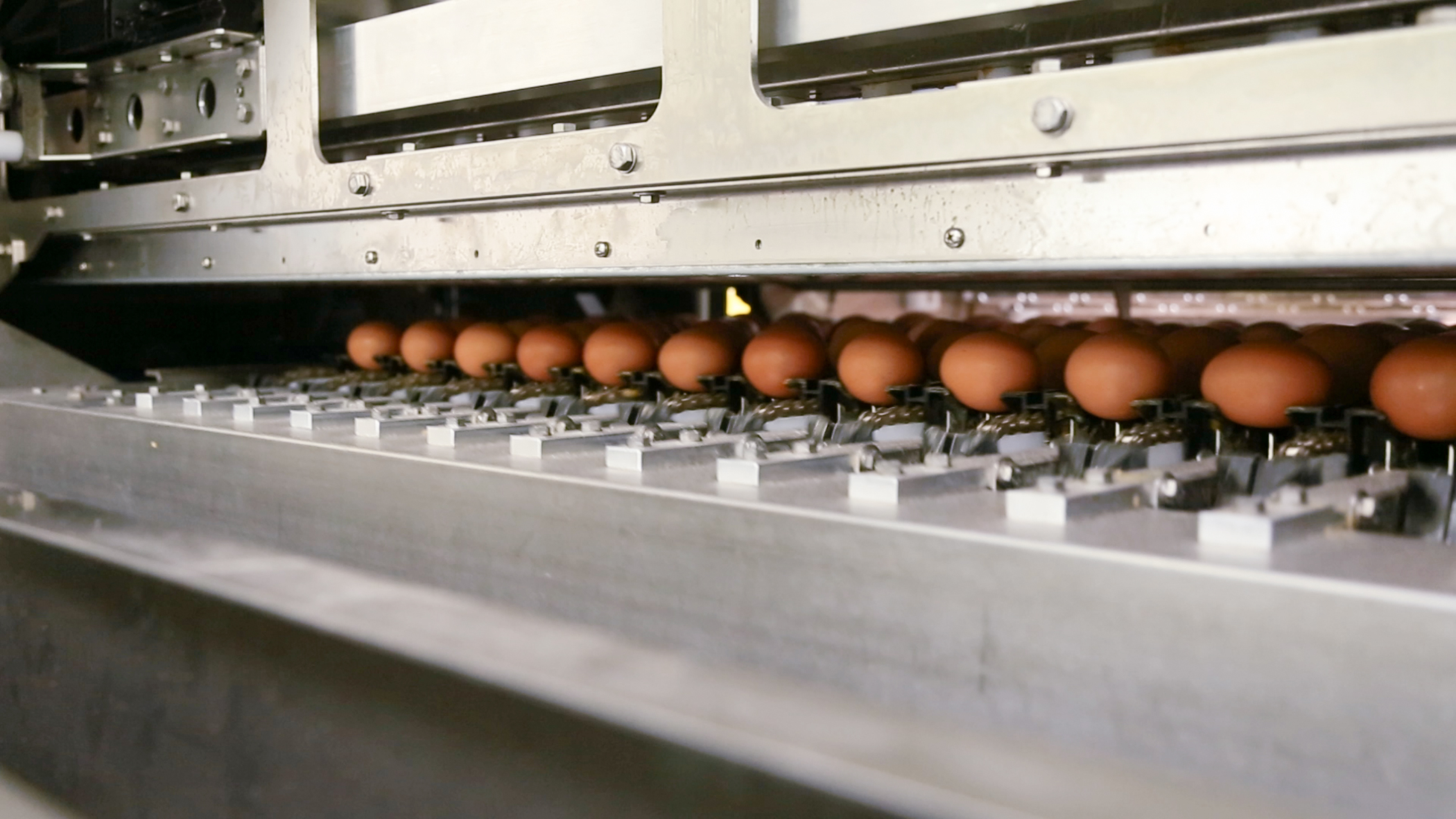

- Gentle Handling: Four-track system operates at lower speeds to reduce egg damage and ensure product quality.
- Reduced Maintenance: Designed with minimal moving parts for increased durability and fewer replacements.
- Servo-Driven Inserter: Enhances precision and reduces wear, ensuring reliable performance.

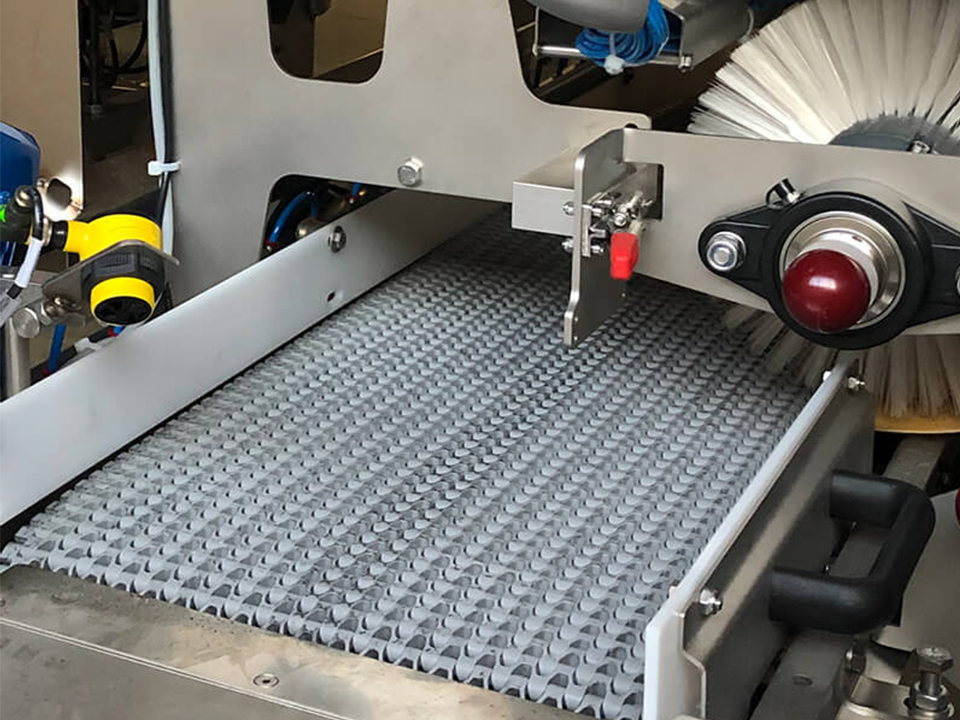

- Proven Detection Systems: Accurately identifies cracks, dirt, leaks, and blood for consistent grading results.
The OptiGrader 450 offers increased capacity with reliable grading and superior hygiene.
Specifications
- Max Capacity
- 450 cases/hour
- 162,000 eggs/hour
- Infeed rows
- 12
- Main Track
- 4
- Number of lanes
- 12-24
- Egg Loading
- In-line
