SANOMINI CIP
10,000 litres/hour
Manual or automatic cleaning and disinfection technology for food processing plants. Designed to save cleaning time, energy, water, and wastewater. Ideal for small/medium plants.
The SANOMINI CIP is a complete food processing cleaning plant suitable for the manual or automatic cleaning of pipes, tanks, and other utilities where a maximum flow rate of 40.000 l/h is required using a single chemical solution. The system is skid-mounted providing maximum layout flexibility.
Based on best-practice hygienic design principles, the system is set to clean with a minimum speed of 1,5m/s. That ensures a turbulent flow and good mechanical impact of the CIP in the pipes. SANOMINI is suitable for cleaning of pipes up to four inches in diameter and therefore fits the most common pipes used in liquid food processing. With SANOVO CIP systems you have full control over your cleaning operations and ensure a thorough sanitation process.
- Minimize the cleaning time by reducing labor involved in the cleaning;
- Completely controlled by PLC for high efficiency and safe CIP cycle control;
- CIP Recipes available and editable by a user-friendly HMI
- Re-use of detergents reducing the operational costs;
- Ensure the correct concentration of the detergents used and flow rate of the cleaning;
- Completely skid mounted and tested before delivery
Specifications
- Size
- 10,000 L/h
- 40,000 L/h
- Type
- 10,000 L/h: Manual/Automatic
- 40,000 L/h: Manual/Automatic
- Flow rate
- 10,000 l/h: 10,000 l/h
- 40,000 l/h: 40,000 l/h
- Tank
- 10,000 L/h: 1- Water/Acid/Alkaline
- 40,000 L/h: 1- Water/Acid/Alkaline
- Tank Capacity
- 10,000 L/h: 1,200 L
- 40,000 L/h: 2,000 L

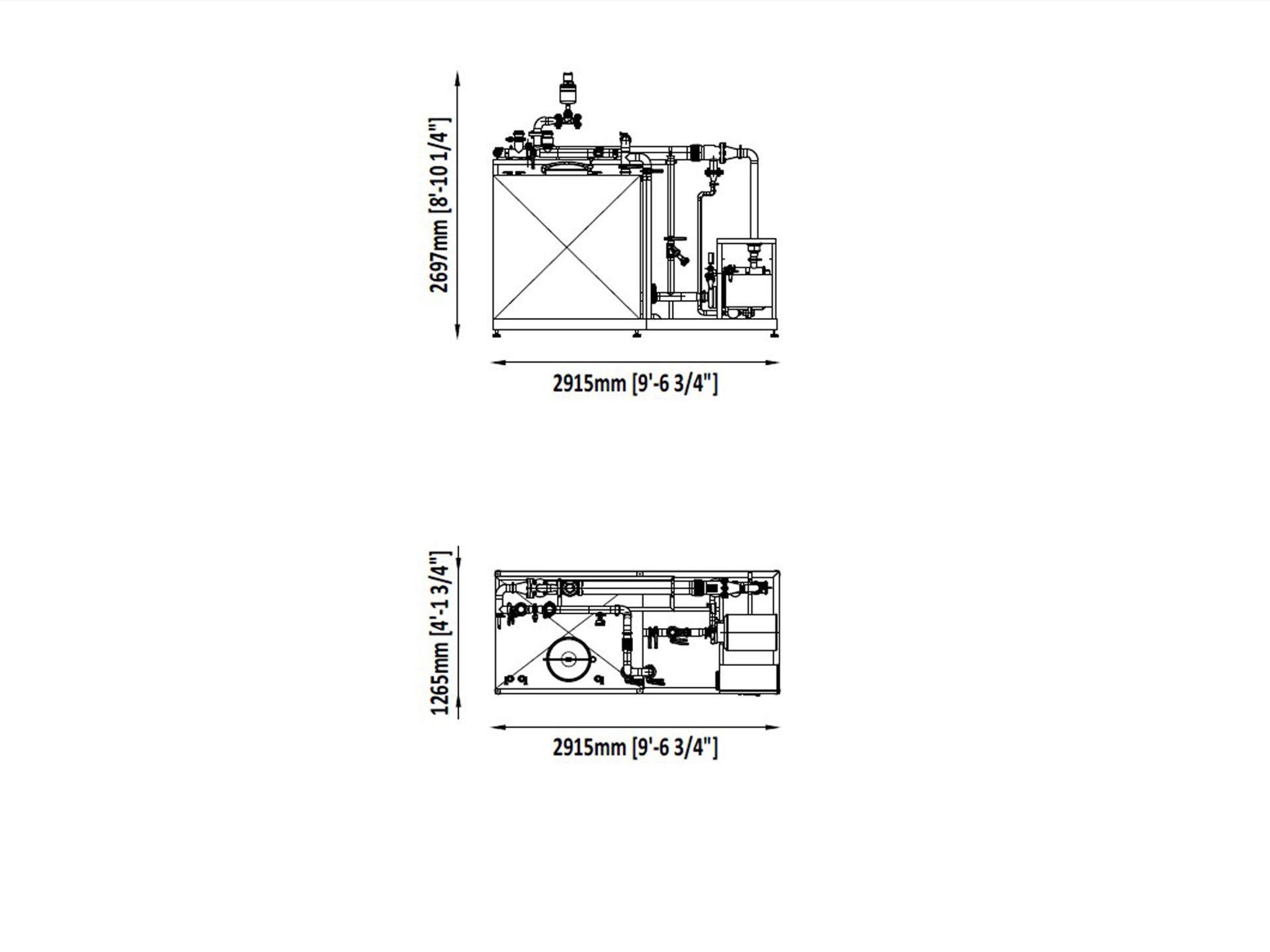

- Length
- 10,000 L/h: 2,700 mm
- 40,000 L/h: 3,000 mm
- Width
- 10,000 L/h: 1,000 mm
- 40,000 L/h: 1,250 mm
- Height
- 10,000 L/h: 2,550 mm
- 40,000 L/h: 2,700 mm
- Steam Consumption (2.5 ± 0.5 bar) - Max. Flowrate
- 10,000 L/h: 300 kg/h
- 40,000 L/h: 750 kg/h
- Installed Electrical Power Consumption
- 10,000 L/h: 4.0 kW
- 40,000 L/h: 7.5 kW
- Drinking Water Consumption (2.5 ± 0.5 bar)
- 10,000 L/h: 10,000 L/h
- 40,000 L/h: 40,000 L/h
- Compressed Air Consumption (7 ± 1 bar)
- 10,000 L/h: 2 Nm3/h
- 40,000 L/h: 2 Nm3/h
