SANOVO TECHNOLOGY PROCESS

SANOMAXI CIP

30,000 litres/hour

Automatic cleaning and disinfection technology for food processing plants. Designed to save cleaning time, energy, water, and wastewater. Ideal for medium/large plants.

The SANOMAXI CIP is a complete cleaning plant suitable for the automatic cleaning of pipes, tanks, and other utilities within food processing, where a maximum flow rate of 30.000 l/h is required using a double chemical solution based on Caustic and Acid. The system is skid-mounted providing maximum layout flexibility.

Based on best-practice hygienic design principles, the system is set to clean with a minimum speed of 1,5m/s. That ensures a turbulent flow and good mechanical impact of the CIP in the pipes. SANOXMAXI is suitable for cleaning pipes up to three inches in diameter and therefore fits the most common pipes used in liquid food processing. Other than SANOMIDI and SANOMINI, SANOMAXI can clean 2 lines at a time to additionally reduce the time spent for cleaning. With SANOVO CIP systems you have full control over your cleaning operations.

  • Minimize the cleaning time reducing labor involved in the cleaning
  • Completely controlled by PLC for high efficiency and safe CIP cycle control
  • Reducing the cleaning time with the possibility to clean 2 utilities in the same time
  • Continuous monitoring and adjustment of right concentration and temperature of Acid and Lye
  • CIP Recipes available and editable via a user-friendly HMI
  • Re-use of detergents reducing operational costs
  • Mix-proof solution ensures maximum cross-contamination control between water and solutions
  • Ensure the correct concentration of the detergents used and flow rate of the cleaning
  • Completely skid mounted and tested before delivery
Contact usGenerate product PDF
  • SANOMAXI CIP system for automatic cleaning of pipes and tanks in food processing.
  • Overview of the SANOMAXI CIP system for automatic cleaning of pipes and tanks in food processing.

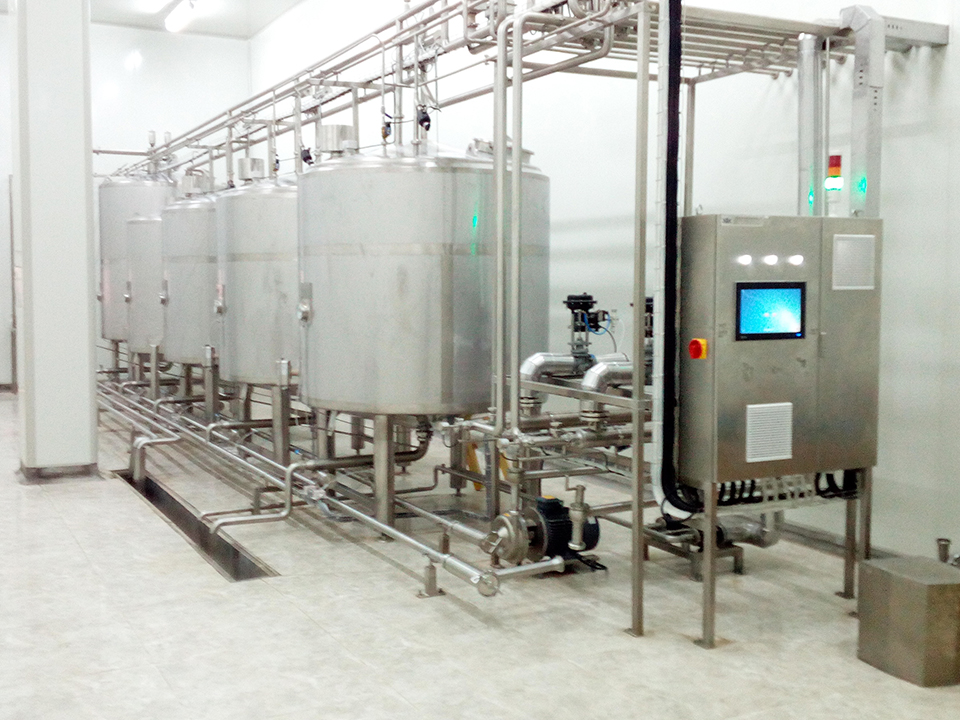

  • SANOMAXI CIP system for automatic cleaning of pipes and tanks inside a facility.
  • SANOMAXI CIP system for automatic cleaning of pipes and tanks in food processing.
  • Overview of the SANOMAXI CIP system for automatic cleaning of pipes and tanks in food processing.
  • SANOMAXI CIP system for automatic cleaning of pipes and tanks inside a facility.

Specifications

  • Type
    • 2 Lines
    • 3 Lines
  • Flow rate
    • 2 Lines: 30,000 L/h each line
    • 3 Lines: 30,000 L/h each line
  • Tank
    • 2 Lines: 3- Water, Acid, Alkaline
    • 3 Lines: 3- Water, Acid, Alkaline
  • Tank capacity
    • 2 Lines: 2,000 L / 3,000 L / 4,000 L / 5,000 L
    • 3 Lines: 2,000 L / 3,000 L / 4,000 L / 5,000 L
  • Preassembled unit - Lenght
    • 2 Lines: 3,000 mm
    • 3 Lines: 3,000 mm
  • Preassembled unit - Width
    • 2 Line: 1,350 mm
    • 3 Lines: 2,600 mm
  • Preassembled unit - Height
    • 2 Lines: 2,200 mm
    • 3 Lines: 2,200 mm
  • Water Tank - Ø
    • 2 Lines: 1,450 mm / 1,600 mm / 1,600 mm / 2,080 mm
    • 3 Lines: 1,450 mm / 1,600 mm / 1,600 mm / 2,080 mm
  • Water Tank - Height
    • 2 Lines: 2,630 mm / 2,880 mm / 3,380 mm / 2,970 mm
    • 3 Lines: 2,630 mm / 2,880 mm / 3,380 mm / 2,970 mm
  • Acid Tank (insulated) - Ø
    • 2 Lines: 1,570 mm / 1,720 mm / 1,720 mm / 2,200 mm
    • 3 Lines: 1,570 mm / 1,720 mm / 1,720 mm / 2,200 mm
  • Acid Tank (insulated) - Height
    • 2 Lines: 2,530 mm / 2,780 mm / 3,280 mm / 2,970 mm
    • 3 Lines: 2,530 mm / 2,780 mm / 3,280 mm / 2,970 mm
  • Alkaline Tank (insulated) - Ø
    • 2 Lines: 1,570 mm / 1,720 mm / 1,720 mm / 2,200 mm
    • 3 Lines: 1,570 mm / 1,720 mm / 1,720 mm / 2,200 mm
  • Alkaline Tank (insulated) - Height
    • 2 Lines: 2,530 mm / 2,780 mm / 3,280 mm / 2,970 mm
    • 3 Lines: 2,530 mm / 2,780 mm / 3,280 mm / 2,970 mm
  • Recovery water tank
    • 2 Lines: Possibility to add a water recovery tank where to collect the water of the last rinse and re-use it in the next one.
    • 3 Lines: Possibility to add a water recovery tank where to collect the water of the last rinse and re-use it in the next one.
  • Disinfectant
    • 2 Lines: Possibility to add disinfectant injection in-line
    • 3 Lines: Possibility to add disinfectant injection in-line
  • Sanification Water Tank
    • 2 Lines: Possibility to add the sanification of the water tank
    • 3 Lines: Possibility to add the sanification of the water tank
  • Steam (2.5 ± 0.5 bar) - Max. Flowrate (without optionals)
    • 2 Lines: 1500 kg/h
    • 3 Lines: 2250 kg/h
  • Installed Electrical Power (without optionals)
    • 2 Lines: 15.0 kW
    • 3 Lines: 22.5 kW
  • Drinking Water (2.5 ± 0.5 bar) - Max. Flowrate During Cleaning (without optionals)
    • 2 Lines: 60,000 L/h
    • 3 Lines: 90,000 L/h
  • Compressed Air (7 ± 1 bar)
    • 2 Lines: 2 Nm3/h
    • 3 Lines: 2 Nm3/h
